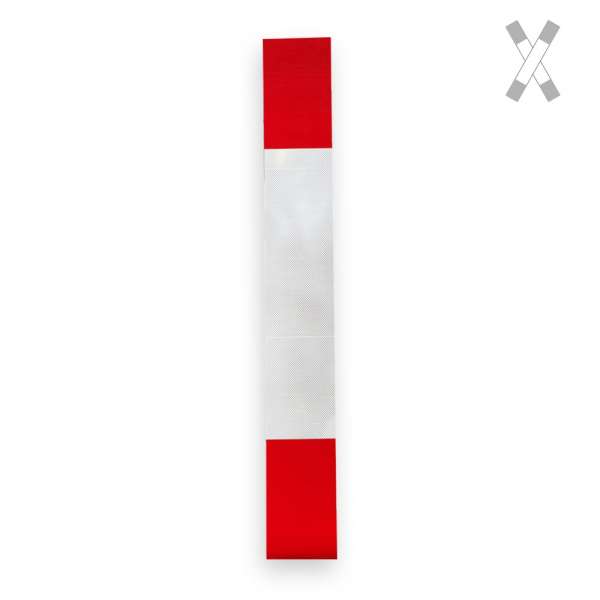

Orafol Reflective Film for St. Andrew’s Cross

• Content: 2 sheets
• Dimensions: 1350 mm x 180 mm each
• Design: self-adhesive
• Colour: white (750 mm), ends printed red (300 mm)
• Reflectivity class: RA2, RA3
• Manufacturer: Orafol^®
• Material: RA2/B ORALITE^® 5811, RA2/C ORALITE^® 5911, RA3/C ORALITE^® 6911

The reflective sheets are made from Orafol^® high-quality reflective film and can be used to replace worn-out or damaged reflective films on St. Andrew’s crosses.

The sheets are available with three different reflective films that are either highly (RA2) or very highly reflective (RA3). ORALITE^® 5811 is made with glass beads whereas ORALITE^® 5911 and ORALITE^® 6911 use microprismatic technology. The colour of the films is white, the red ends are printed with ink.

Product features of the Orafol^® reflective films:
• corrosion and solvent resistant
• weatherproof
• long service life (10 years for RA2, 12 years for RA3)
• CE certified
• complies with EN 12899, DIN 67520

St. Andrew’s crosses at open level crossings should be equipped with RA3 reflective films, those at level crossings with barriers or gates should be equipped with RA2 reflective films.
