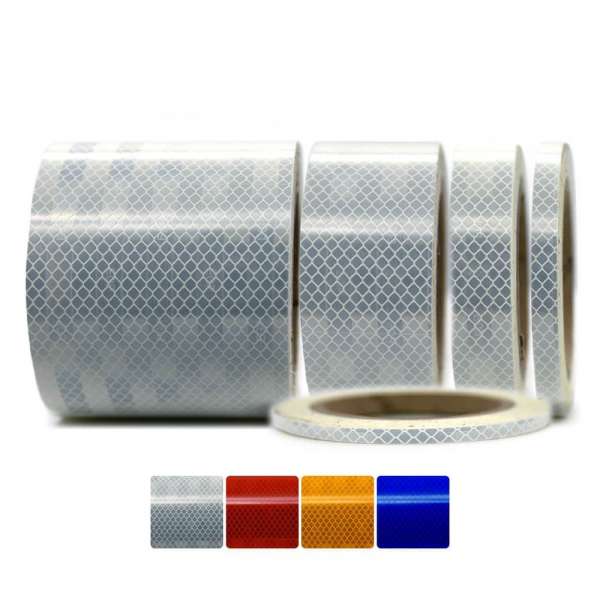

3M Reflective Tape 3430

self-adhesive reflective tape; RA1/C; available in various widths and colours, as 5m or 10 m roll
From €2.78 *
Content: 1 Pc.

Prices incl. VAT plus shipping costs

Please choose a variant first

Colour:

Width:

Rollenlänge:

  • 03110161-005-10-010
The 3M 3430 Engineer Grade Prismatic was developed as a reflective film for traffic signs and... more
Product information "3M Reflective Tape 3430"

The 3M 3430 Engineer Grade Prismatic was developed as a reflective film for traffic signs and also impresses as a reflective tape in other diverse areas of application.

Widths: 5 mm, 10 mm, 25 mm, 50 mm, 100 mm
Lengths: 5 m or 10 m
Reflectivity class: RA1/C
3M colours: white (3430), yellow (3431), red (3432), blue (3435)

Please note that, for production reasons, 5 mm and 10 mm wide tapes are only available as 10 m rolls.

Features of reflective tapes 3M 3430

  • Durability 7 years
  • Film thickness: 0.20 mm
  • Bonding should be carried out at a minimum of +18 °C (material and ambient temperature), increased initial adhesion of the adhesive above 25 °C
  • Weather-resistant, hard-wearing and durable
  • permanently self-adhesive
  • Can be cut to size with a cutter, not very flexible
  • Particularly suitable for flat metal surfaces
  • Edge sealing is recommended

Possible applications of the reflective tape 3M 3430 Engineer Grade Prismatic
The reflective tape is suitable for various applications:
- Reflective target markers for sensor systems, e.g. light barriers (infrared, red light reflex light barriers), measurement technology and CNC controls
- Markings in outdoor areas, e.g. gate entrances, barriers, bollards, posts
- Bonding on bicycles, trailers, pushchairs

Further information on 3M 3430 reflective film can be found in the data sheets.

Important notes:
Please note that there may be a deviation in the reflective tape width of +/- 1 mm due to the production process.

The 3M logo is only printed at larger intervals inside the large roll. It is therefore possible that individual reflective tapes do not have a logo. However, you can recognise the authenticity of the film by its surface structure as shown in the photo.

Adhesive: Permanent
Manufacturer: 3M
Colour: blue, red, white, yellow
Service Life: 7 Years
Reflectivity class: RA1/C
Field of application: Flat surfaces, Photoelectric sensors
Film Thickness: 0,20 mm
