Orafol ORALITE Reflective Tape 5600E roll

The reflective tape is made of Orafol's ORALITE 5600E vehicle film. The reflective tape meets the requirements of ECE regulation 104 for material class E.

Widths: 5 mm, 10 mm, 25 mm, 50 mm, 100 mm
Reflectivity class: RA1/A
Colours: white, yellow, lemon yellow, gold, red, ruby red, orange, blue, green, azure blue, black (colour impression when illuminated in the dark is silver to silver-grey)

Properties of ORALITE 5600E reflector tapes

• flexible, can be bonded well over rivets and corrugations (film thickness: 0.135 mm)
• corrosion and solvent resistant
• Durability: 7 years
• removable under heat
• Complies with ECE 104 Class E

Due to the manufacturing process, a fine welded joint may occur on the reflective sheet at regular intervals. That is not a production fault but a regular feature of the film. These lines are not recognisable from a distance of one metre.

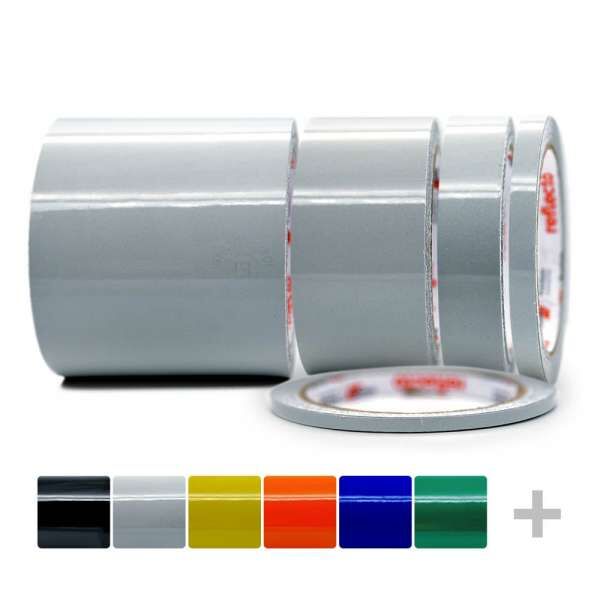

The manufacturer's logo is printed inside the master roll at wide intervals. Therefore, some reflective tapes, which are cut from the master roll, may not show the logo or the name of the manufacturer. You can ascertain the film's authenticity by comparing its surface structure with the photo shown above.

For more information, please refer to the data sheets.

Possible applications of the reflective tape

The reflective tape can be used for the following applications, for example:
- Bicycles, scooters
- prams, trailers
- Rollators, walking sticks
- Bollards
